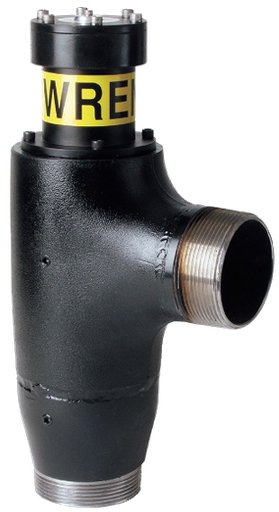

99 LD-2200 | Mechanical Line Leak Detector

Most Cost-Efficient Line Leak Detection Available

Advanced Features Available
Easy Installation
24/7 Support

Product Information

Comprehensive technical details and specifications for our industrial tank gauging solution

Product Description

Unleash the power of the most cost-efficient line leak detection available with the 99 LD-2200\75. Designed for optimal efficiency, this leak detector allows more flow than any other in its class. When paired with a 3/4 hp submersible and seven or more nozzles, the 99 LD-2200\75 sets a new standard for line leak detection.
Optimized Performance: In situations where pressure in the line may fall below the necessary level to keep the leak detector open—common when using a 3/4 hp submersible with seven or more nozzles or a 1/3 hp submersible with five nozzles—the 99 LD-2200\75 compensates for pressure drop. Factors like burial depth, pipe size, and pump/motor performance influence leak detector reset, and the 99 LD-2200\75 is designed to address these challenges.
Enhanced Functionality: If your 99 LD-2200 line leak detector is resetting with most or all nozzles open, the Vml 99 LD-2200\75 steps in to ensure uninterrupted performance. It meets all specifications of the 99 LD-2200 and carries third-party certification, with the only change being the enhanced flow capacity. The hex portion is easily identifiable, painted green for quick recognition. Opt for the 99 LD-2200\75 and experience a new level of efficiency and reliability in line leak detection.
Quick Specifications
Category Vaporless Product Line
Support 24/7 Technical

Key Features

•  Any fuel compatibility reduces warehouse and truck stocking needs
   -Alcohols, Biodiesel, Aviation, Gasoline, Diesel
•  Any pump
•  Longest length pipeline system
•  Largest volume pipeline system
•  Field adjustable for high resiliency applications
•  Installs with 2” six-point socket or pipe wrench
•  Highest flow capacity
•  Guaranteed for 24 months from date of installation to detect 3 GPH @ 10 PSI leak
•  Shortest leak detector profile
•  Exceeds EPA regulations
•  Detects leaks up to 10’ above the leak detector

Applications

•  Designed for optimal efficiency, this leak detector allows more flow than any other in its class.
