L-1-PVC
Powered by advanced electro-optic technology, these solid-state sensors ensure precise and continuous monitoring, setting the stage for seamless operations.
Advanced Features Available
Easy Installation
24/7 Support
Product Information
Comprehensive technical details and specifications for our industrial tank gauging solution
Product Description
Step into the future of tank monitoring with OMNTEC, where our sensors redefine industry standards with unmatched ease of installation, reliability, and cost-effectiveness.
Built with durability in mind, our ruggedly constructed sensors carry both UL listing and third-party certification, reflecting our commitment to quality. A standout feature is the ability to remotely test these sensors with a single button press, providing a level of convenience that transforms your maintenance routine.

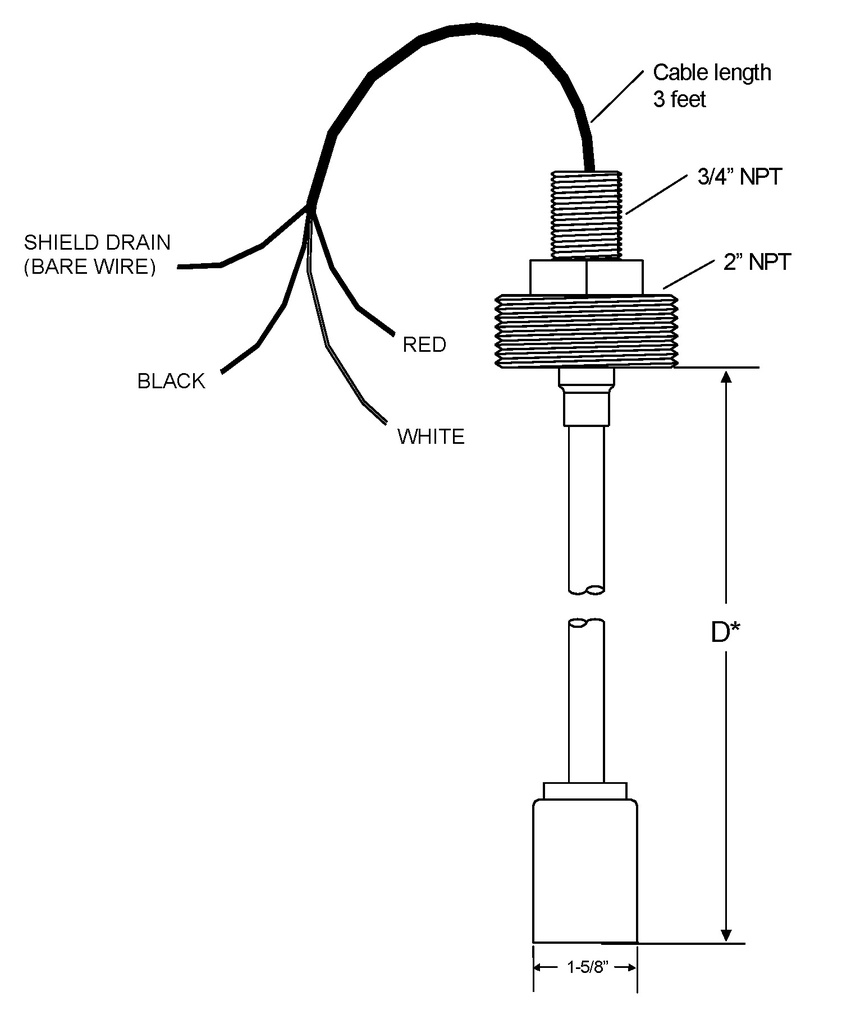

The L-series sensors, including the L-1-PVC, are engineered to deliver product-level alarms for high, caution, or low product levels. What sets them apart is the seamless remote testing capability, eliminating the need for removal during maintenance. The L-1-PVC, specifically, is a variable length single alarm point PVC level sensor, offering flexibility and precision tailored to your unique requirements.
Quick Specifications
Category
All Sensors
Support
24/7 Technical
Technical Specifications
• U.L. LISTED 5L04
&emsp: INTRINISICALLY SAFE CLASS I, GROUP D HAZARDOUS LOCATIONS WHEN CONNECTED IN ACCORDANCE WITH CONTROL DRAWING NOS. L1PD2, L2PD4, L3PD6, LU1, LU2, LU3, LU4, LU6, LU9
• PRINCIPLES OF OPERATION
&emsp: NON POLAR LIQUIDS (FUEL ONLY) - PHOTO OPTIC
&emsp: DRY CONDITION - NORMALLY CLOSED LIGHT BEAM
&emsp: ALARM CONDITION - OPENS (REFRACTS) NORMALLY CLOSED LIGHT BEAM
• OPERATING TEMPERATURE
&emsp: -40 TO +140 F
• PROBE CABLE
&emsp: SHIELDED 22 AWG UL-E118830 CM MAXIMUM LENGTH 2000 FEET
• POWER
&emsp: 2 VDC @ 13 mA
• RESPONSE TIME
&emsp: IMMEDIATE
• WEIGHT
&emsp: 2 POUNDS
• MATERIAL OF CONSTRUCTION
&emsp: PVC
&emsp: INTRINISICALLY SAFE CLASS I, GROUP D HAZARDOUS LOCATIONS WHEN CONNECTED IN ACCORDANCE WITH CONTROL DRAWING NOS. L1PD2, L2PD4, L3PD6, LU1, LU2, LU3, LU4, LU6, LU9
• PRINCIPLES OF OPERATION
&emsp: NON POLAR LIQUIDS (FUEL ONLY) - PHOTO OPTIC
&emsp: DRY CONDITION - NORMALLY CLOSED LIGHT BEAM
&emsp: ALARM CONDITION - OPENS (REFRACTS) NORMALLY CLOSED LIGHT BEAM
• OPERATING TEMPERATURE
&emsp: -40 TO +140 F
• PROBE CABLE
&emsp: SHIELDED 22 AWG UL-E118830 CM MAXIMUM LENGTH 2000 FEET
• POWER
&emsp: 2 VDC @ 13 mA
• RESPONSE TIME
&emsp: IMMEDIATE
• WEIGHT
&emsp: 2 POUNDS
• MATERIAL OF CONSTRUCTION
&emsp: PVC
Key Features
• A standout feature is the ability to remotely test these sensors with a single button press, providing a level of convenience that transforms your maintenance routine.
• The L-1-PVC, specifically, is a variable length single alarm point PVC level sensor, offering flexibility and precision tailored to your unique requirements.
• The L-1-PVC, specifically, is a variable length single alarm point PVC level sensor, offering flexibility and precision tailored to your unique requirements.
Applications
• Step into the future of tank monitoring with OMNTEC, where our sensors redefine industry standards with unmatched ease of installation, reliability, and cost-effectiveness.
