L-1-S

With a rugged construction, UL listing, and third-party certification, OMNTEC solid-state sensors set the industry standard.

Advanced Features Available
Easy Installation
24/7 Support

Product Information

Comprehensive technical details and specifications for our industrial tank gauging solution

Product Description

Elevate your tank monitoring solutions with OMNTEC, a name synonymous with ease of installation, reliability, and cost-effectiveness. Our sensors, driven by cutting-edge electro-optic technology, deliver precise and continuous monitoring for unparalleled peace of mind. One distinctive feature that sets OMNTEC apart is the ability to remotely test sensors with a single button press, adding a layer of convenience to your operations. The L-series sensors, including the L-1-S, are meticulously designed to provide product-level alarms for high, caution, or low product levels. What's more, these sensors can be remotely tested without the need for removal, streamlining your maintenance processes. Meet your specific monitoring needs with the L-1-S, a 12-inch single alarm point level sensor. Its versatile design ensures accurate and reliable monitoring tailored to your unique requirements.
Quick Specifications
Category All Sensors
Support 24/7 Technical

Technical Specifications

• U.L. LISTED 5L04
  Intrinsically safe Class I, Group D Hazardous Locations when connected in accordance with Control Drawing nos. L1, L2, L3, L4, L6, L9
• PRINCIPLES OF OPERATION
  LIQUIDS (ex: fuel, water) – Photo Optic
  DRY CONDITION – Normally closed light beam
  ALARM CONDITION – Opens (refracts) normally closed light beam
• OPERATING TEMPERATURE
  -40 TO +140 F
• SENSOR
  Shielded 22 AWG UL-E118830 CM Maximum length 2000 feet
• POWER
  2 VDC @ 13 mA
• RESPONSE TIME
  Immediate
• WEIGHT
  2 pounds

Key Features

•  One distinctive feature that sets OMNTEC apart is the ability to remotely test sensors with a single button press, adding a layer of convenience to your operations.
•  The L-series sensors, including the L-1-S, are meticulously designed to provide product-level alarms for high, caution, or low product levels.
•  What's more, these sensors can be remotely tested without the need for removal, streamlining your maintenance processes.

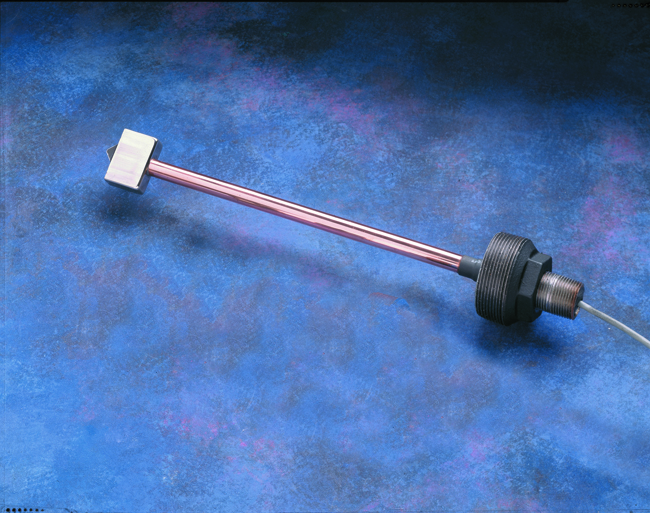

•  Meet your specific monitoring needs with the L-1-S, a 12-inch single alarm point level sensor.

Applications

•  Elevate your tank monitoring solutions with OMNTEC, a name synonymous with ease of installation, reliability, and cost-effectiveness.
