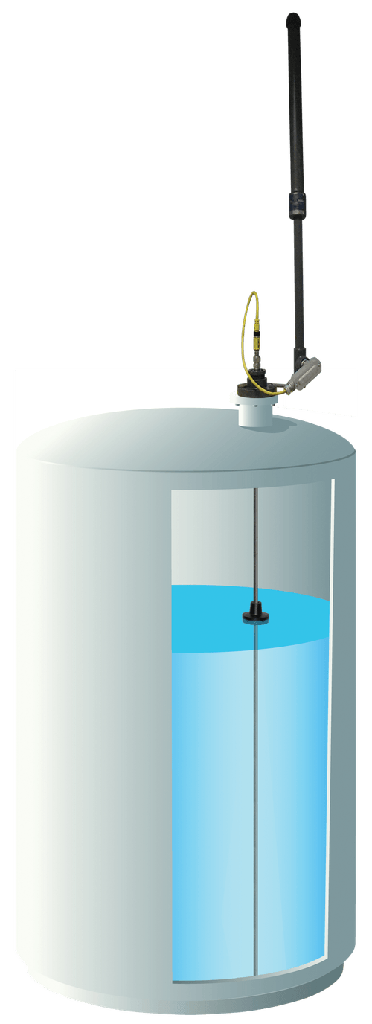

The DataStik probe takes field-proven magnetostrictive technology and packages it in a revolutionary new way for greater reliability, easy installation, and mounting. The MDS-RS-R5F(X)/MDS-RS-R1F(X), where X is the number of floats [1 or 2], is ideal for liquid level monitoring of product and interface level in a wide variety of liquid media in both above ground and below ground storage tanks, and is assembled to your specifications in measuring lengths up to 24ft.
All probe electronics are integrated into a 0.625 inch OD 316-Stainless Steel sensing tube. This breakthrough in package design eliminates the bulky electronics enclosure at the top of the probe and offers you greater options for insertion and mounting in tanks and vessels. The MDS-RS-R5F(X)/MDS-RS-R1F(X)employs a rigid stainless-steel housing and provides cost-effective inventory monitoring for a wide variety of vessels and liquids.
The MDS-RS-R5F(X)/MDS-RS-R1F(X)lower cost design provides more options, offers savings on installation and mounting and has the ultimate in “designed-in” reliability.
The MDS-RS-R5F(X)/MDS-RS-R1F(X)includes the patented DataCheck™ Transmitter, batteries, and mounting mast.
In-Tank Probes
MDS-RS | WIRELESS STAINLESS STEEL PROBE
The MDS-RS-R5F(X)/MDS-RS-R1F(X)employs a rigid stainless-steel housing and provides cost-effective inventory monitoring for a wide variety of vessels and liquids.
Advanced Features Available
Easy Installation
24/7 Support
Product Information
Comprehensive technical details and specifications for our industrial tank gauging solution
Product Description
Quick Specifications
Category
In-Tank Probes
Support
24/7 Technical
Technical Specifications
• Power: Two D-cell lithium thionyl chloride batteries (1 for DataStik™ Probe, 1 for DataCheck™ Transmitter)
• Measurement Length: Up to 24 ft. (7.3M)
• Resolution: 0.010”
• Linearity: 0.01%
• Repeatability: Equal to resolution
• Temperature Measurement: Up to five along the probe span
• Temperature accuracy: -10°C to +85°C ± 0.5°C
• Absolute: -40°C to -11°C ± 2.0°C
• Temperature Sensing Range: -40ºF to +65ºC
• Operating Temperature Range: -40ºF to + 71ºC
• Compatible Controller: OEL8000II-W / OEL8000IIIX-W
• Probe Output to Transmitter: Serial data
• Weight: W2 Series (see chart below)
• Accessories: SFS Stainless Steel Float Spacer required on probe lengths 288” or greater
• Bend Radius: Not to exceed 3’ during installation
• Probe Output to Transmitter: Serial data
• Distance to Receiver: Up to 1 km, unlimited using DataCheck™ Repeaters
• System Configuration: See DataStik™ Product Bulletin
• Wireless Scheme: Full Supervised Simplex 902-928 MHz FHSS
• Electrical Safety Approval: CSA US/C Exia intrinsically safe
• Measurement Length: Up to 24 ft. (7.3M)
• Resolution: 0.010”
• Linearity: 0.01%
• Repeatability: Equal to resolution
• Temperature Measurement: Up to five along the probe span
• Temperature accuracy: -10°C to +85°C ± 0.5°C
• Absolute: -40°C to -11°C ± 2.0°C
• Temperature Sensing Range: -40ºF to +65ºC
• Operating Temperature Range: -40ºF to + 71ºC
• Compatible Controller: OEL8000II-W / OEL8000IIIX-W
• Probe Output to Transmitter: Serial data
• Weight: W2 Series (see chart below)
• Accessories: SFS Stainless Steel Float Spacer required on probe lengths 288” or greater
• Bend Radius: Not to exceed 3’ during installation
• Probe Output to Transmitter: Serial data
• Distance to Receiver: Up to 1 km, unlimited using DataCheck™ Repeaters
• System Configuration: See DataStik™ Product Bulletin
• Wireless Scheme: Full Supervised Simplex 902-928 MHz FHSS
• Electrical Safety Approval: CSA US/C Exia intrinsically safe
Key Features
• Patented wireless, battery-powered technology
• Rugged, Reliable Magnetostrictive Design with Electronics Integrated into 5/8” Sensing Tube
• High Resolution and Accuracy
• CSA approved Intrinsically Safe (Exia)
• Strong, rigid 316-SS housing
• Numerous Float Options for nearly any application
• No Calibration Required
• Rugged, Reliable Magnetostrictive Design with Electronics Integrated into 5/8” Sensing Tube
• High Resolution and Accuracy
• CSA approved Intrinsically Safe (Exia)
• Strong, rigid 316-SS housing
• Numerous Float Options for nearly any application
• No Calibration Required
Applications
• The MDS-RS-R5F(X) / MDS-RS-R1F(X) , where X is the number of floats [1 or 2], is ideal for liquid level monitoring of product and interface level in a wide variety of liquid media in both above ground and below ground storage tanks, and is assembled to your specifications in measuring lengths up to
• This breakthrough in package design eliminates the bulky electronics enclosure at the top of the probe and offers you greater options for insertion and mounting in tanks and vessels.
• This breakthrough in package design eliminates the bulky electronics enclosure at the top of the probe and offers you greater options for insertion and mounting in tanks and vessels.
