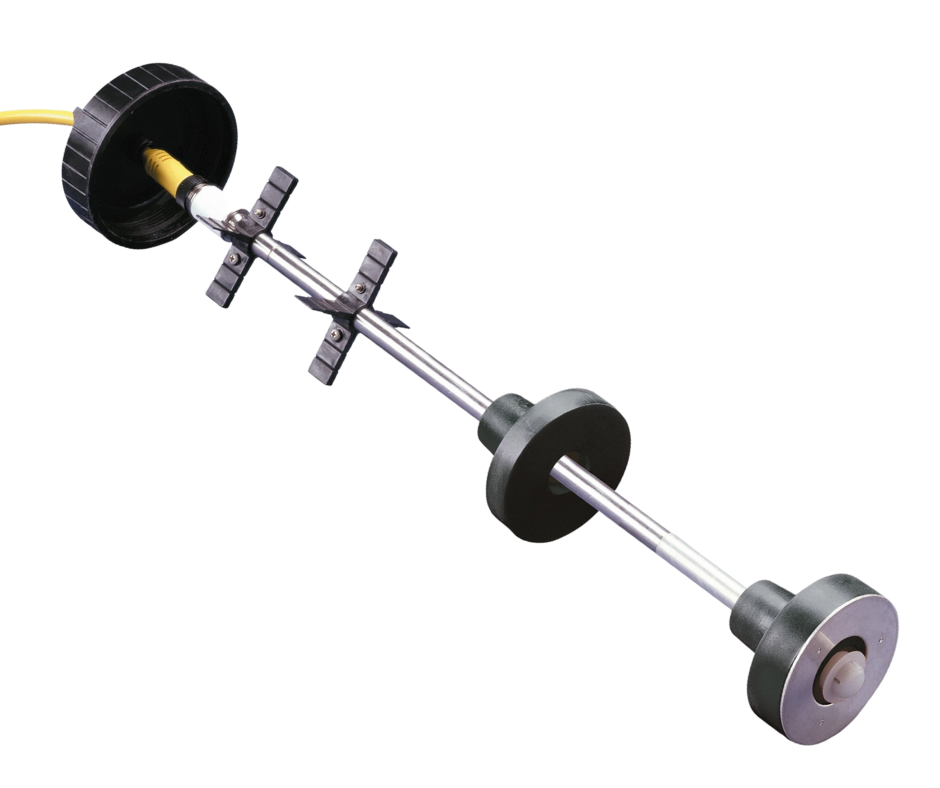

MTG-RS-R1FX | STAINLESS STEEL PROBE

•  Enclosure (probe): NEMA 4 IP68
•  Input Power: 28 VDC +/-10%
•  Probe Length: Up to 24 feet. Consult factory for lengths over 24 feet.
•  Accuracy: 0.010 inches inventory mode
•  Linearity: +/- 0.01% of full scale or +/- 0.010 inches, whichever is greater
•  Repeatability: +/- 0.001% of full scale or +/- 0.00025 inches, whichever is greater
•  Temperature Measurement: 1 temperature-sensing device
•  Temperature Accuracy, Absolute: +/- 2° F
•  Temperature Measurement Resolution: +/- 0.01° F
•  Temperature Sensing Range: -40 to 150° F
•  Operating Temperature Range: -40 to 160° F
•  Probe Output: Digital over 2 wires
•  Distance to Monitor: Probe cable must be EC-2 (Belden #8761) up to 1,000 feet. Consult factory for lengths over 1,000 feet.
•  Pressure Rating: Up to 500 psi (float-dependent)
•  Floats: Specs based on 4-inch standard
• Compatible Controllers: OEL8000II PROTEUS Series OEL8000III-B, OEL8000III-K, OEL8000III-X
•  Accessories: SL-34 Swage lock (probe-head isolation for chemical applications)
          2” Float Kit Options - Kit includes: float(s), 6' yellow cable, spacers, 2" cap, SK-4 sealing kit, white clips and cathodic boot
          BFK2-85        2” Buna N float kit for gas
          BFK2-95        2” Buna N float kit for diesel
          BFK2-OWS      2” Buna N float kit for OWS tanks
          BFK2-SF        2” Buna N float kit single float
          SSFK2-85       2” 316 stainless steel float kit for gas
          SSFK2-95       2” 316 stainless steel float kit for diesel
          SSFK2-SF       2” 316 stainless steel float kit single float
          4” Float Kit Options - Kit includes: float(s), 6' yellow cable, spacers, 4" cap, SK-4 sealing kit, white clips and cathodic boot
          BFK2-85        4” Buna N float kit for gas
          BFK2-95        4” Buna N float kit for diesel
          BFK2-OWS      4” Buna N float kit for OWS tanks
          BFK2-SF        4” Buna N float kit single float
          SSFK2-85       4” 316 stainless steel float kit for gas
          SSFK2-95       4” 316 stainless steel float kit for diesel
          SSFK2-SF       4” 316 stainless steel float kit single float
•  Approvals: UL-listed, CUL-listed, CE-listed

•  Patented reflection technique for reliability
•  Durable tube-in-tube construction
•  High signal-to-noise ratio
•  Fast, accurate update
•  Float options
•  Available in single or dual float configurations
  - F2 Product and water float capable
  - F1 Product float only capable
•  Custom lengths
•  Intrinsically safe
•  Cost-effective
•  UL-listed, CUL-listed, CE-listed

•  The magnetostrictive tank-gauging (MTG) probe utilizes magnetostrictive technology to provide users with the same level of reliability, durability and cost-effectiveness they expect with all OMNTEC products.
•  The MTG probe used with OMNTEC’s tank gauging controllers monitors product levels, water levels and temperature in both underground and aboveground tank applications.
•  The number in the probe part number indicates the shaft length and corresponds to tank diameter.
