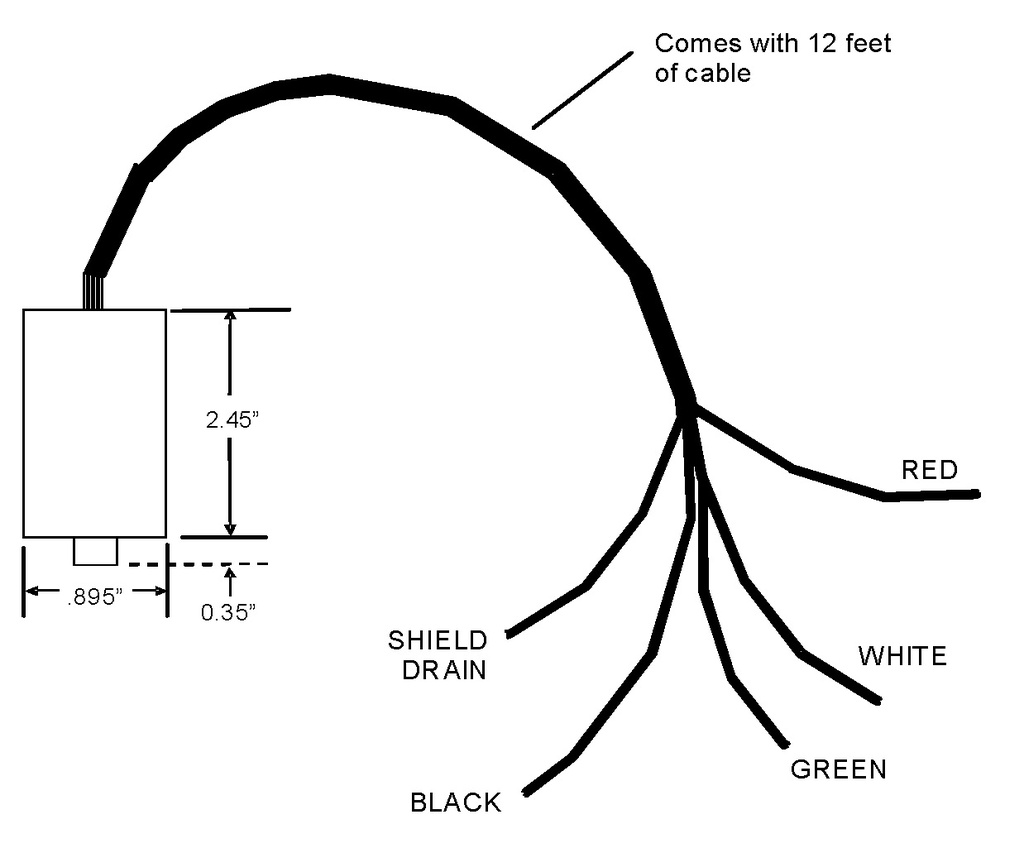

PDS-.895 | Product Distinguishing Sensor
The PDS-.895 product distinguishing sensor was designed to accommodate a variety of applications.
Advanced Features Available
Easy Installation
24/7 Support
Product Information
Comprehensive technical details and specifications for our industrial tank gauging solution
Product Description
OMNTEC sensors are most known for their ease of installation, reliability, cost-effectiveness and remote testability. Electro-optic technology provides accurate and continuous monitoring. Ruggedly constructed, these solid-state sensors are UL listed and Third-party certified. A distinguishing feature of OMNTEC sensors is that they can be tested remotely with the press of a single button.
The PDS-.895 product distinguishing sensor was designed to accommodate a variety of applications. With its convenient size and ability to detect liquids at any angle, the PDS-.895 sensor is the ideal sensor for sumps, dispenser pans, containment areas and annular spaces of double-wall steel tanks.
Quick Specifications
Category
All Sensors
Support
24/7 Technical
Technical Specifications
• U.L. LISTED 5L04
Intrinsically safe Class I, Group D Hazardous Locations when connected in accordance with Control Drawing nos. L1, L2, L3, L4, L6, L9
• PRINCIPLES OF OPERATION
LIQUIDS (ex: fuel, water) – photo optic
DRY CONDITION – normally closed light beam
ALARM CONDITION – opens (refracts) normally closed light beam
WATER DETECTION – conductance
• OPERATING TEMPERATURE
-40 TO +140 F
• SENSOR CABLE
Shielded 22 AWG UL-E118830 CM Maximum length 2000 feet
• POWER
2 VDC @ 13 mA
• RESPONSE TIME
Immediate
• WEIGHT
1/2 pound
Intrinsically safe Class I, Group D Hazardous Locations when connected in accordance with Control Drawing nos. L1, L2, L3, L4, L6, L9
• PRINCIPLES OF OPERATION
LIQUIDS (ex: fuel, water) – photo optic
DRY CONDITION – normally closed light beam
ALARM CONDITION – opens (refracts) normally closed light beam
WATER DETECTION – conductance
• OPERATING TEMPERATURE
-40 TO +140 F
• SENSOR CABLE
Shielded 22 AWG UL-E118830 CM Maximum length 2000 feet
• POWER
2 VDC @ 13 mA
• RESPONSE TIME
Immediate
• WEIGHT
1/2 pound
Key Features
• Electro-optic technology provides accurate and continuous monitoring.
• A distinguishing feature of OMNTEC sensors is that they can be tested remotely with the press of a single button.
• With its convenient size and ability to detect liquids at any angle, the PDS-.895 sensor is the ideal sensor for sumps, dispenser pans, containment areas and annular spaces of double-wall steel tanks.
• A distinguishing feature of OMNTEC sensors is that they can be tested remotely with the press of a single button.
• With its convenient size and ability to detect liquids at any angle, the PDS-.895 sensor is the ideal sensor for sumps, dispenser pans, containment areas and annular spaces of double-wall steel tanks.
Applications
• With its convenient size and ability to detect liquids at any angle, the PDS-.895 sensor is the ideal sensor for sumps, dispenser pans, containment areas and annular spaces of double-wall steel tanks.
