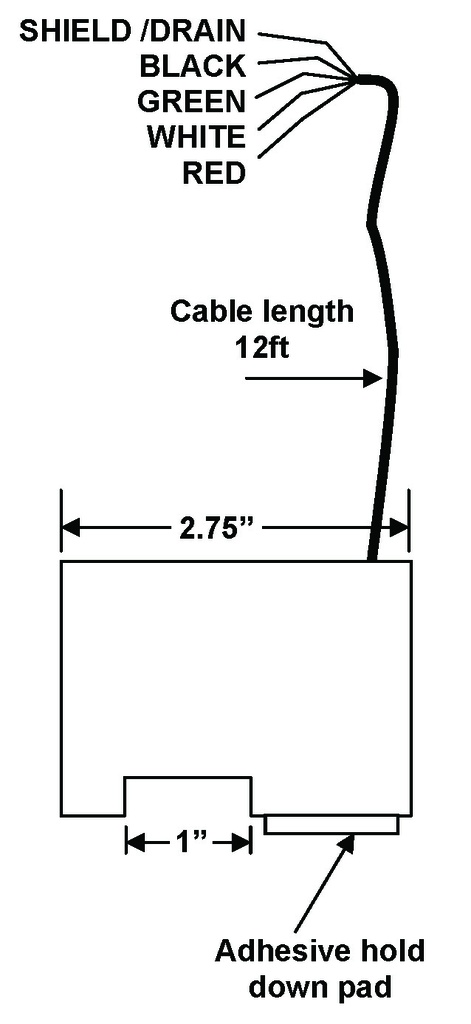

PDS-FL | Product Distinguishing Sensor - Main Image

All Sensors

PDS-FL | Product Distinguishing Sensor

Name: PDS-FL | Product Distinguishing Sensor
Brand: OMISOL
Availability: InStock

The PDS-FL is a non-distinguishing floor containment leak sensor designed to trigger with approximately 0.75” of oil or water.

Advanced Features Available

Easy Installation

24/7 Support

Request Quote

Product Information

Comprehensive technical details and specifications for our industrial tank gauging solution

Product Description

OMNTEC sensors are most known for their ease of installation, reliability, cost-effectiveness and remote testability. Electro-optic technology provides accurate and continuous monitoring. Ruggedly constructed, these solid-state sensors are UL listed and Third-party certified. A distinguishing feature of OMNTEC sensors is that they can be tested remotely with the press of a single button. The PDS-FL is a non-distinguishing floor containment leak sensor designed to trigger with approximately 0.75” of oil or water.

Quick Specifications

Category All Sensors

Support 24/7 Technical

Technical Specifications

• OPERATING TEMPERATURE
-40 TO +140 F
• PRINCIPLES OF OPERATION
LIQUIDS (ex: fuel, water) – photo optic
DRY CONDITION – normally closed light beam
ALARM CONDITION – opens (refracts) normally closed light beam
WATER DETECTION – conductance
• POWER
2 VDC @ 13 mA
• SENSOR CABLE
Shielded 22 AWG UL-E118830 CM Maximum length 2000 feet
• WEIGHT
1/2 pound
• RESPONSE TIME
Immediate

Key Features

• Electro-optic technology provides accurate and continuous monitoring.
• A distinguishing feature of OMNTEC sensors is that they can be tested remotely with the press of a single button.

Applications

• The PDS-FL is a non-distinguishing floor containment leak sensor designed to trigger with approximately 0.75" of oil or water.

Downloads & Resources

Product Brochures

Pds Fl Pds Fl Brochure

PDF 135.9 KB
