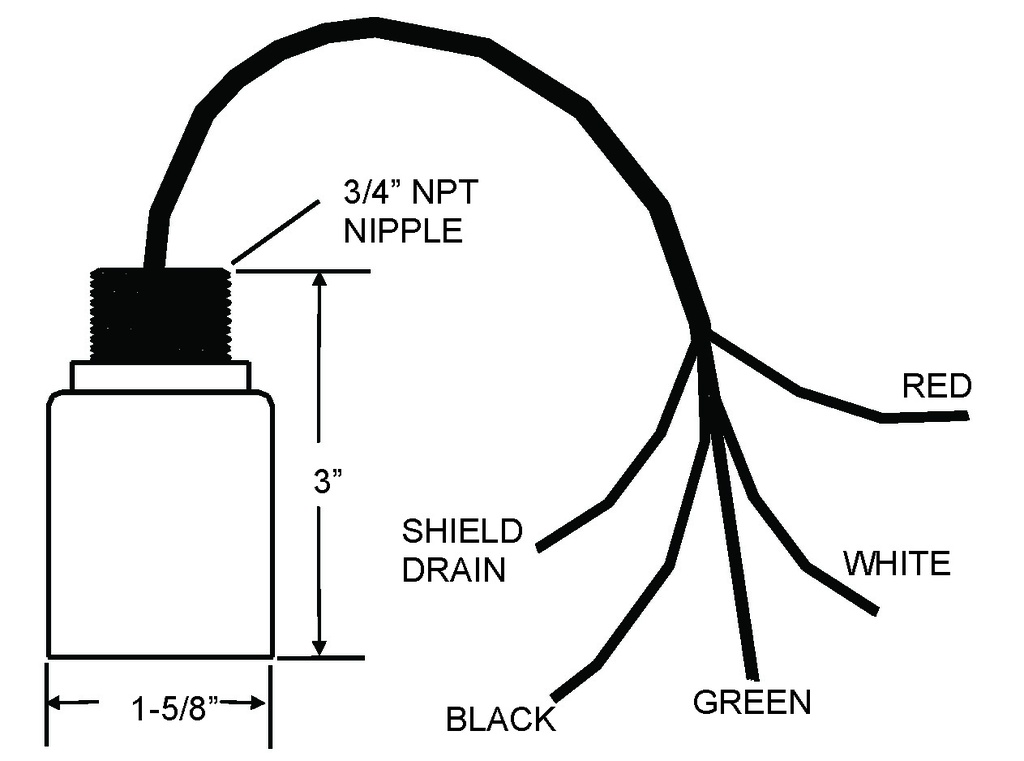

PDS-PVC | Product Distinguishing Sensor

• U.L. LISTED 5L04
  Intrinsically safe Class I, Group D Hazardous Locations when connected in accordance with Control Drawing nos. L1, L2, L3, L4, L6, L9
• PRINCIPLES OF OPERATION
  WATER DETECTION – conductance
  NON-POLAR LIQUIDS (ex: fuel) – Photo Optic
  DRY CONDITION – normally closed light beam
  ALARM CONDITION – opens (refracts) normally closed light beam
• OPERATING TEMPERATURE
  -40 TO +140 F
• SENSOR CABLE
  Shielded 22 AWG UL-E118830 CM Maximum length 2000 feet
• POWER
  2 VDC @ 13 mA
• RESPONSE TIME
  Immediate
• WEIGHT
  1/2 pound
• MATERIAL OF CONSTRUCTION
  PVC
