InvigiSense is an easy to install, web based sensor solution. No cables, tapes or floats required. Simply screw the sensor into a standard 2" tank port and view the data online using the device of your choice, including your smartphone. Alerts are automatically emailed when tank needs servicing. Available with GPS.
Operation – Liquid Logistics
Cost effective InvigiSense systems greatly improve operational efficiency, by providing 24/7 tank monitoring which reduces costs and increases gross margins, eliminating the guesswork by preventing run-outs, overflows and spills.
Just-In-Time Collections and Deliveries
• REDUCE COSTS
Efficient truck routing reduces transportation costs.
Eliminate manual tank measurement.
• PROFIT & GROW
Add customers without having to add more trucks or drivers.
Maximize gallons per drop or pick-up.
• IMPROVE SERVICE
Know when your customers’ tanks need servicing before they do.
All Sensors

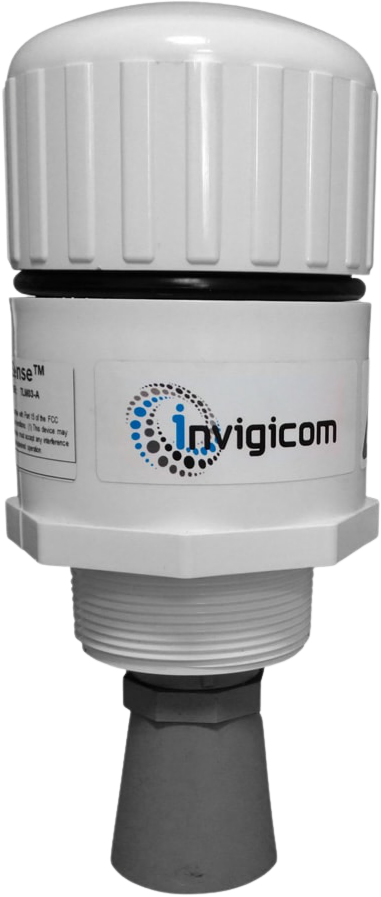

TLM03-E Battery Operated Tank Monitoring
Description InvigiSense is an easy to install, web based sensor solution.
Easy Installation
24/7 Support
Product Information
Comprehensive technical details and specifications for our industrial tank gauging solution
Product Description
Quick Specifications
Category
All Sensors
Support
24/7 Technical
Technical Specifications
General
• Measurement Method
Ultrasonic rangefinder
• Data
Range reading, Battery voltage
Level Reading
• Range
Minimum Range ~8 inches, Maximum 25 feet (can be extended to ~34feet)
• Resolution
0.39 inches (1cm)
• Accuracy
Typical +/- 1-2” (Range reading is temperature compensated based on temperature probe inside the case)
• Reading interval
Programmable
• Calibration
Estimated gallons from depth in inches
Electrical
• Power Supply
4 Energizer L91 AA Lithium batteries
• Radio Onboard
LTE Cat M with support for AT&T, Verizon, Bell, Telus
• Battery Life
Typical 2 years at 2 reports per day (may be affected by temperature, cellular connection/outages and reporting rate)
Environmental
• Operating Temperature
-40°C to 60°C (Limited only by battery specifications)
• Certification
FCC
• Measurement Method
Ultrasonic rangefinder
• Data
Range reading, Battery voltage
Level Reading
• Range
Minimum Range ~8 inches, Maximum 25 feet (can be extended to ~34feet)
• Resolution
0.39 inches (1cm)
• Accuracy
Typical +/- 1-2” (Range reading is temperature compensated based on temperature probe inside the case)
• Reading interval
Programmable
• Calibration
Estimated gallons from depth in inches
Electrical
• Power Supply
4 Energizer L91 AA Lithium batteries
• Radio Onboard
LTE Cat M with support for AT&T, Verizon, Bell, Telus
• Battery Life
Typical 2 years at 2 reports per day (may be affected by temperature, cellular connection/outages and reporting rate)
Environmental
• Operating Temperature
-40°C to 60°C (Limited only by battery specifications)
• Certification
FCC
Applications
• Simply screw the sensor into a standard 2" tank port and view the data online using the device of your choice, including your smartphone.
• Alerts are automatically emailed when tank needs servicing.
• Operation — Liquid Logistics Cost effective InvigiSense systems greatly improve operational efficiency, by providing 24/7 tank monitoring which reduces costs and increases gross margins, eliminating the guesswork by preventing run-outs, overflows and spills.
• Eliminate manual tank measurement.
• • IMPROVE SERVICE Know when your customers’ tanks need servicing before they do.
• Alerts are automatically emailed when tank needs servicing.
• Operation — Liquid Logistics Cost effective InvigiSense systems greatly improve operational efficiency, by providing 24/7 tank monitoring which reduces costs and increases gross margins, eliminating the guesswork by preventing run-outs, overflows and spills.
• Eliminate manual tank measurement.
• • IMPROVE SERVICE Know when your customers’ tanks need servicing before they do.
Downloads & Resources
Manuals
2Related Products
Explore our comprehensive range of tank gauging and monitoring solutions
All Sensors

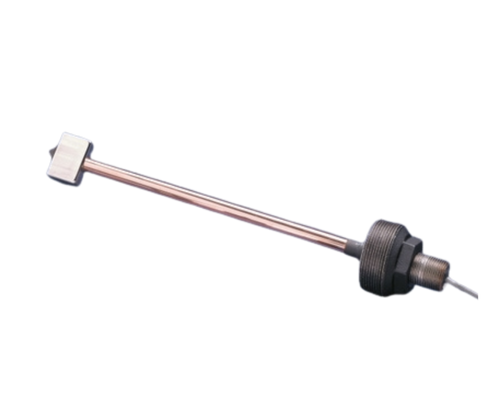

BX-L12
OMNTEC sensors are most known for their ease of installation, reliability, cost effectiveness and their ability to be te...
- Self identifying by part number, serial number and function
- Self diagnostic
All Sensors
BX-L20
OMNTEC sensors are most known for their ease of installation, reliability, cost effectiveness and their ability to be te...
- Self identifying by part number, serial number and function
- Self diagnostic
All Sensors

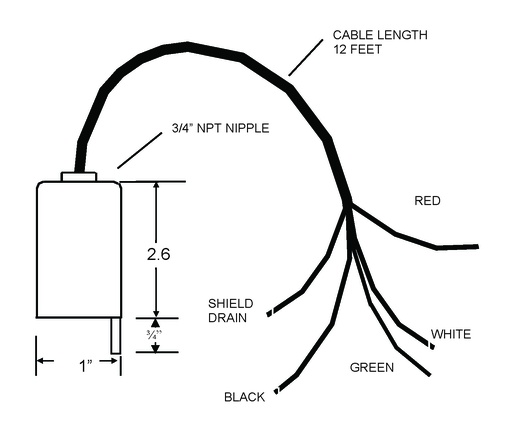

BX-LS-1.25 | Non-Distinguishing Sensor
