The PROTEUS Series brings advanced technology, versatility, scalability, and enhanced features like a 7-inch color touch screen, to provide a brighter future in tank gauging and leak detection. With its ability to simultaneously monitor product levels, water levels, temperature, leaks, and much more, the PROTEUS Series is ideal for various gauging and leak detection applications.
For those looking for an economical solution, the OEL8000III-B is a perfect fit. It accepts up to 16 of OMNTEC’s Bright Eye (BX Series) sensors, which are networked and utilize 4-wire bus technology to distinguish between product and water or detect the presence of liquid. With the PROTEUS Series, there's no need for sensor or probe input modules, which makes ordering and installation a breeze.
Each sensor is equipped with a built-in microprocessor that identifies its location and alarm conditions on the PROTEUS's 7-inch color touch screen graphic display. With OMNTEC’s proven reliability, the PROTEUS Series offers a comprehensive, user-friendly system that can open doors to endless possibilities.
Advanced Tank Monitoring & Leak Detection

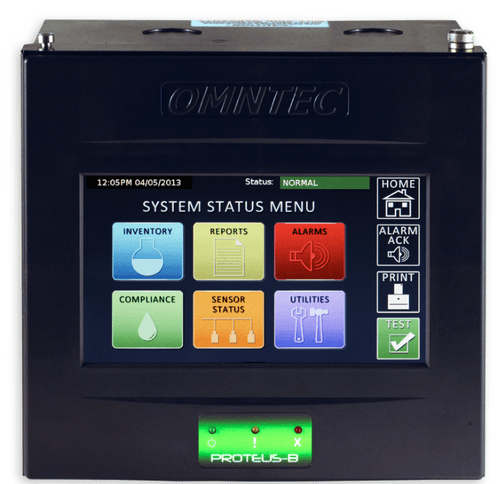

PROTEUS-B | Automatic Tank Gauge
Discover the Future of Tank Gauging and Leak Detection with the PROTEUS Series
Advanced Features Available
Easy Installation
24/7 Support
Product Information
Comprehensive technical details and specifications for our industrial tank gauging solution
Product Description
Quick Specifications
Category
Advanced Tank Monitoring & Leak Detection
Support
24/7 Technical
Technical Specifications
• Optional Features: CITLD upgradeable Modbus RTU and TCP OMNTEC PC software
• Input Power: 100-240 VAC +/- 10% 50/60 Hz 50 watts
• Voltage to Sensors: 12 VDC
• Voltage to Probes: 28 VDC
• Audio Visual Controls: Display - Color 7-inch graphic display with touch screen
Audible alarm: 85 dB piezoelectric horn
System status: 3 LED’s (OK, Warning, Alarm
• Operating Temperature: 20 to 140° F (-7° to 60° C)
• Compatible Sensors: BX-Series sensors (refer to document no. 900106)
• BX-Series Sensor Cable: Shielded 22 AWG with drain wire (OMNTEC EC-4) Maximum length 2,000 feet (610m)
• Compatible Probes: MTG-RS Series - Rigid Gauging Probe
MTG-FL Series - Flexible Fixed Top Probe
MTG-FB Series - Flexible Fixed Bottom Probe
• MTG Probe Cable: OMNTEC EC-2 (Belden #8761) - 2 conductor 22 AWG shielded twisted pair cable with drain. Low Inductance: equal or less than 0.2 microhenries per foot. Maximum length 1,000 feet (305m). Consult factory for longer wire runs
• Accessories: RD7CTS: Mini-Me remote display
DDL Series - Delivery Defender Lite universal remote overfill alarm
X232-420 - External RS-232 to 4-20 mA converter
C232-BAC - Bacnet TCP/IP converter
• Weight: 20 lb. (9kg)
• Dimensions: (h) 7.73” (w) 8.19” (d) 5.42”
• Approvals: UL-listed & CUL-listed
• Input Power: 100-240 VAC +/- 10% 50/60 Hz 50 watts
• Voltage to Sensors: 12 VDC
• Voltage to Probes: 28 VDC
• Audio Visual Controls: Display - Color 7-inch graphic display with touch screen
Audible alarm: 85 dB piezoelectric horn
System status: 3 LED’s (OK, Warning, Alarm
• Operating Temperature: 20 to 140° F (-7° to 60° C)
• Compatible Sensors: BX-Series sensors (refer to document no. 900106)
• BX-Series Sensor Cable: Shielded 22 AWG with drain wire (OMNTEC EC-4) Maximum length 2,000 feet (610m)
• Compatible Probes: MTG-RS Series - Rigid Gauging Probe
MTG-FL Series - Flexible Fixed Top Probe
MTG-FB Series - Flexible Fixed Bottom Probe
• MTG Probe Cable: OMNTEC EC-2 (Belden #8761) - 2 conductor 22 AWG shielded twisted pair cable with drain. Low Inductance: equal or less than 0.2 microhenries per foot. Maximum length 1,000 feet (305m). Consult factory for longer wire runs
• Accessories: RD7CTS: Mini-Me remote display
DDL Series - Delivery Defender Lite universal remote overfill alarm
X232-420 - External RS-232 to 4-20 mA converter
C232-BAC - Bacnet TCP/IP converter
• Weight: 20 lb. (9kg)
• Dimensions: (h) 7.73” (w) 8.19” (d) 5.42”
• Approvals: UL-listed & CUL-listed
Key Features
• Accepts up to 4 or 8 magnetostrictive probes
• Accepts up to 16 Bright Eye sensors
• Cost-saving BUSSED sensor technology
• 1 RS-232 port
• Intuitive, icon-driven user interface
• Single PB system diagnostics
• MODBUS, industry standard
• BACNET interface available
• Small footprint
• VLD (static leak test) standard
• CITLD (dynamic leak test) standard
• Advanced system diagnostics
• Accepts up to 16 Bright Eye sensors
• Cost-saving BUSSED sensor technology
• 1 RS-232 port
• Intuitive, icon-driven user interface
• Single PB system diagnostics
• MODBUS, industry standard
• BACNET interface available
• Small footprint
• VLD (static leak test) standard
• CITLD (dynamic leak test) standard
• Advanced system diagnostics
