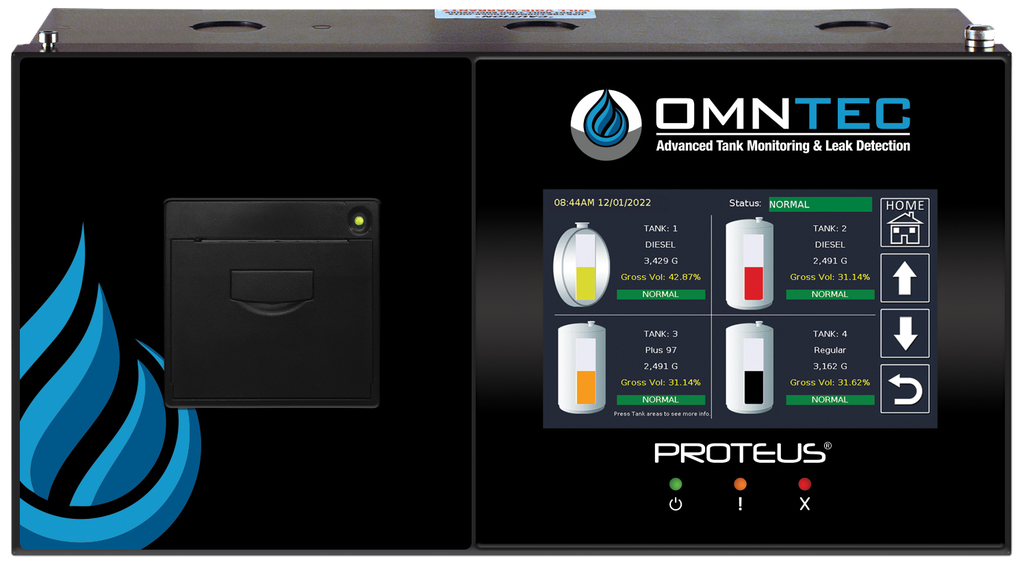

PROTEUS-K for Oil/Water Separator Tanks

•  Input Power: 100-240 VAC +/- 10% 50/60 Hz 60 watts
•  Voltage to Sensors: 12 VDC
•  Voltage to Probes: 28 VDC
•  Display: Color 7-inch graphic display with capacitive touch screen
•  Audible alarm: 85 dB piezoelectric horn
•  Printer: 36-character thermal
•  System status: 3 LED’s (Power, Warning, Alarm)
•  Relay Outputs: 5 standard, 6A - 30 VDC / 250 VAC RES
•  Low-voltage Outputs: 12 VDC @ 225 mA
•  Operating Temperature: 20 to 140° F (-7° to 60° C)
•  Standard Communications: TCP/IP | RS-232
•  Models Available: OEL8000IIIK4-5 (accepts 4 level probes and 16 sensors)
            OEL8000IIIK4P-5 (accepts 4 level probes and 16 sensors, with printer)
•  Optional Features: CITLD Upgradeable | Modbus RTU and TCP | Tank Active™ App
•  Compatible Sensors: BX-Series sensors (refer to document no. 900106)
•  BX-Series Sensor Cable: OMNTEC EC-4 - 4 conductor 22 AWG shielded twisted pair cable with drain or equivalent. Maximum length                2,000 feet (610m).
•  Compatible Probes: MTG-RS Series Rigid Gauging Probe (refer to document no. 900194)
•  MTG Probe Cable: OMNTEC EC-2 (Belden 8761) - 2 conductor 22 AWG shielded twisted pair cable with drain. Low Inductance: equal or              less than 0.2 microhenries per foot. Maximum length 1,000 feet (305m). Consult factory for longer wire runs
•  Accessories: MMRD7 Series Mini-Me remote display
         DDL Series Delivery Defender Lite universal remote overfill alarm
         RAS Series Remote annunciators
         PS-103 Thermal printer
         DPU-6PK Thermal paper
         XC-R8 External relay expansion
         X232-420 External RS-232 to 4-20 mA converter
         MB-232/485 Configurable RS-232 or RS-485 option board
         C232-BAC RS-232 BACnet TCP/IP converter
         C485-BAC RS-485 BACnet TCP/IP converter
         WRS-232 Wireless link
•  Enclosure Type: UL Type 1
•  Weight: 14 lbs. (6.35 kg)
•  Dimensions: (h) 10.0” (w) 15.2” (d) 5.1”
•  Approvals: UL-listed, CUL-listed, ATEX, IECEx

•  Accepts up to 4 magnetostrictive probes
•  Accepts up to 16 Bright Eye sensors
•  Sensors networked using state of the art 4 wire bus technology
•  Color 7-inch graphic display with capacitive touch screen
•  Large user-friendly icons
•  Easy to read leak and level alarms
•  Built in web server
•  Built in VPN capability
•  Flash based non-volatile memory for program storage (does not require a battery)
•  1 RS-232 port
•  Up to 2 configurable RS-232/RS-485 ports (optional)
•  Ethernet / TCP/IP standard
•  E-mail / Text capability standard
•  Thermal printer option or network printing capable
•  Up to 5 built in programmable relays
•  Up to 8 additional external dry contact relays
•  SD memory card slot (for extended logging)
•  VLD standard
•  CITLD upgradeable
•  MODBUS RTU & TCP upgradeable
•  Remote display option
•  Compatible with Tank Active™ remote tank inventory monitoring app
•  Remote software update capable
•  Gain the visibility necessary to properly maintain your OWS
•  Reduce routine confined space inspections and maintenance
•  Schedule pump outs with precision
•  Pump out verification
•  Watch oil accumulation and proactively schedule pump out prior to coalesce compromise

•  Featuring both internal and external tank monitoring, which is easily understood on its 7-inch color touch-screen.
•  It can be equipped with up to 16 OMNTEC Bright Eye (BX-Series) sensors for monitoring containment areas.
