We have upgraded our dependable PROTEUS Series with advanced technology, versatility, scalability and new features like a capacitive touch screen display, 5 built in programmable relays and built in VPN capability. The PROTEUS-K Series can monitor multiple parameters, including product levels, water levels, temperature, leaks and more in up to eight tanks simultaneously. This flexibility makes PROTEUS perfect for various tank gauging and leak detection applications.
The PROTEUS-K can accept up to 16 OMNTEC Bright Eye (BX Series) sensors, which are excellent for distinguishing between product and water or detecting liquid presence. These Bright Eye sensors are networked and utilize 4-wire bus technology, providing a distinct advantage.
BX Series sensors come equipped with a built-in microprocessor that enables each sensor to self-identify and provide its location. This information is readily displayed alongside alarm conditions on the PROTEUS’s 7-inch color capacitive touch screen graphic display.
With OMNTEC’s proven reliability, the PROTEUS offers an attractive, comprehensive, and user-friendly system that opens the door to endless possibilities.
Advanced Tank Monitoring & Leak Detection

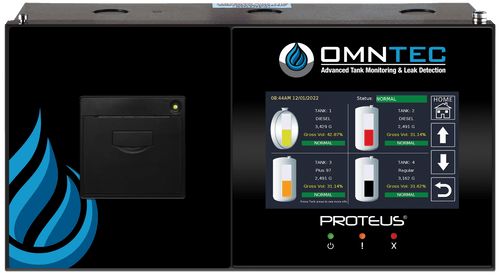

PROTEUS-K Gen IV | Automatic Tank Gauge
PROTEUS-K Gen IV | Automatic Tank Gauge is listed by OMNTEC in its Automatic Tank Gauging product category.
Advanced Features Available
Easy Installation
24/7 Support
Product Information
Comprehensive technical details and specifications for our industrial tank gauging solution
Product Description
Quick Specifications
Category
Advanced Tank Monitoring & Leak Detection
Support
24/7 Technical
Technical Specifications
• Input Power: 100-240 VAC +/- 10% 50/60 Hz 60 watts
• Voltage to Sensors: 12 VDC
• Voltage to Probes: 28 VDC
• Display: Color 7-inch graphic display with capacitive touch screen
• Audible alarm: 85 dB piezoelectric horn
• Printer: 36-character thermal
System status: 3 LED’s (Power, Warning, Alarm)
• Relay Outputs: 5 standard, 6A - 30 VDC / 250 VAC RES
• Low-voltage Outputs: 12 VDC @ 225 mA
• Operating Temperature: 20 to 140° F (-7° to 60° C)
• Standard Communications: TCP/IP | RS-232
• Models Available: OEL8000IIIK4-5 (accepts 4 level probes and 16 sensors)
OEL8000IIIK8-5 (accepts 8 level probes)
OEL8000IIIK4P-5 (accepts 4 level probes and 16 sensors, with printer)
OEL8000IIIK8P-5 (accepts 8 level probes, with printer)
• Optional Features: CITLD Upgradeable | Modbus RTU and TCP | Tank Active™ App
• Compatible Sensors: BX-Series sensors (refer to document no. 900106)
• BX-Series Sensor Cable: OMNTEC EC-4 - 4 conductor 22 AWG shielded twisted pair cable with drain or equivalent. Maximum length 2,000 feet (610m).
• Compatible Probes: MTG-RS Series Rigid Gauging Probe (refer to document no. 900194)
MTG-FL Series Flexible Fixed Top Probe (refer to document no. 900166)
MTG-FB Series Flexible Fixed Bottom Probe (refer to document no. 900162)
• MTG Probe Cable: OMNTEC EC-2 (Belden 8761) - 2 conductor 22 AWG shielded twisted pair cable with drain. Low Inductance: equal or less than 0.2 microhenries per foot. Maximum length 1,000 feet (305m). Consult factory for longer wire runs.
• Accessories: MMRD7 Series Mini-Me remote display
DDL Series Delivery Defender Lite universal remote overfill alarm
RAS Series Remote annunciators
PS-103 Thermal printer
DPU-6PK Thermal paper
XC-R8 External relay expansion
X232-420 External RS-232 to 4-20 mA converter
MB-232/485 Configurable RS-232 or RS-485 option board
C232-BAC RS-232 BACnet TCP/IP converter
C485-BAC RS-485 BACnet TCP/IP converter
WRS-232 Wireless link
• Enclosure Type: UL Type 1
• Weight: 14 lbs. (6.35 kg)
• Dimensions: (h) 10.0” (w) 15.2” (d) 5.1”
• Approvals: UL-listed, CUL-listed, ATEX, IECEx
• Voltage to Sensors: 12 VDC
• Voltage to Probes: 28 VDC
• Display: Color 7-inch graphic display with capacitive touch screen
• Audible alarm: 85 dB piezoelectric horn
• Printer: 36-character thermal
System status: 3 LED’s (Power, Warning, Alarm)
• Relay Outputs: 5 standard, 6A - 30 VDC / 250 VAC RES
• Low-voltage Outputs: 12 VDC @ 225 mA
• Operating Temperature: 20 to 140° F (-7° to 60° C)
• Standard Communications: TCP/IP | RS-232
• Models Available: OEL8000IIIK4-5 (accepts 4 level probes and 16 sensors)
OEL8000IIIK8-5 (accepts 8 level probes)
OEL8000IIIK4P-5 (accepts 4 level probes and 16 sensors, with printer)
OEL8000IIIK8P-5 (accepts 8 level probes, with printer)
• Optional Features: CITLD Upgradeable | Modbus RTU and TCP | Tank Active™ App
• Compatible Sensors: BX-Series sensors (refer to document no. 900106)
• BX-Series Sensor Cable: OMNTEC EC-4 - 4 conductor 22 AWG shielded twisted pair cable with drain or equivalent. Maximum length 2,000 feet (610m).
• Compatible Probes: MTG-RS Series Rigid Gauging Probe (refer to document no. 900194)
MTG-FL Series Flexible Fixed Top Probe (refer to document no. 900166)
MTG-FB Series Flexible Fixed Bottom Probe (refer to document no. 900162)
• MTG Probe Cable: OMNTEC EC-2 (Belden 8761) - 2 conductor 22 AWG shielded twisted pair cable with drain. Low Inductance: equal or less than 0.2 microhenries per foot. Maximum length 1,000 feet (305m). Consult factory for longer wire runs.
• Accessories: MMRD7 Series Mini-Me remote display
DDL Series Delivery Defender Lite universal remote overfill alarm
RAS Series Remote annunciators
PS-103 Thermal printer
DPU-6PK Thermal paper
XC-R8 External relay expansion
X232-420 External RS-232 to 4-20 mA converter
MB-232/485 Configurable RS-232 or RS-485 option board
C232-BAC RS-232 BACnet TCP/IP converter
C485-BAC RS-485 BACnet TCP/IP converter
WRS-232 Wireless link
• Enclosure Type: UL Type 1
• Weight: 14 lbs. (6.35 kg)
• Dimensions: (h) 10.0” (w) 15.2” (d) 5.1”
• Approvals: UL-listed, CUL-listed, ATEX, IECEx
Key Features
• Accepts up to 8 magnetostrictive probes
• Accepts up to 16 Bright Eye sensors
• Sensors networked using state of the art 4 wire bus technology
• Color 7-inch graphic display with capacitive touch screen
• Large user-friendly icons • Easy to read leak and level alarms
• Built in web server • Built in VPN capability
• Flash based non-volatile memory for program storage (does not require a battery)
• 1 RS-232 port
• Up to 2 configurable RS-232/RS-485 ports (optional) >br> • Ethernet / TCP/IP standard
• Thermal printer option or network printing capable
• Up to 5 built in programmable relays
• Up to 8 additional external dry contact relays
• SD memory card slot (for extended logging)
• VLD standard
• CITLD upgradeable
• MODBUS RTU & TCP upgradeable
• Remote display option
• Compatible with Tank Active™ remote tank inventory monitoring app
• Remote software update capable
• Accepts up to 16 Bright Eye sensors
• Sensors networked using state of the art 4 wire bus technology
• Color 7-inch graphic display with capacitive touch screen
• Large user-friendly icons • Easy to read leak and level alarms
• Built in web server • Built in VPN capability
• Flash based non-volatile memory for program storage (does not require a battery)
• 1 RS-232 port
• Up to 2 configurable RS-232/RS-485 ports (optional) >br> • Ethernet / TCP/IP standard
• Thermal printer option or network printing capable
• Up to 5 built in programmable relays
• Up to 8 additional external dry contact relays
• SD memory card slot (for extended logging)
• VLD standard
• CITLD upgradeable
• MODBUS RTU & TCP upgradeable
• Remote display option
• Compatible with Tank Active™ remote tank inventory monitoring app
• Remote software update capable
